Web Container Model

Agenda:

1. ServletContext parameter
   • Comparision between Servlet init & context initialization parameters
2. Servlet Scopes
   1. Request Scope
   2. Session Scope
   3. Application Scope (or) Context Scope
   • Multithreading issues associated with each scope
   • Differences between parameters and attributes
   • To print all context scoped attributes:
   • To print hit count of the web-application:
   • To print no. of requests send in each(current) Session
   • To print no.of Session objects created in application
   • no. of requests triggered Ip-address wise
   • How do we make Context scoped attributes Thread safe ?

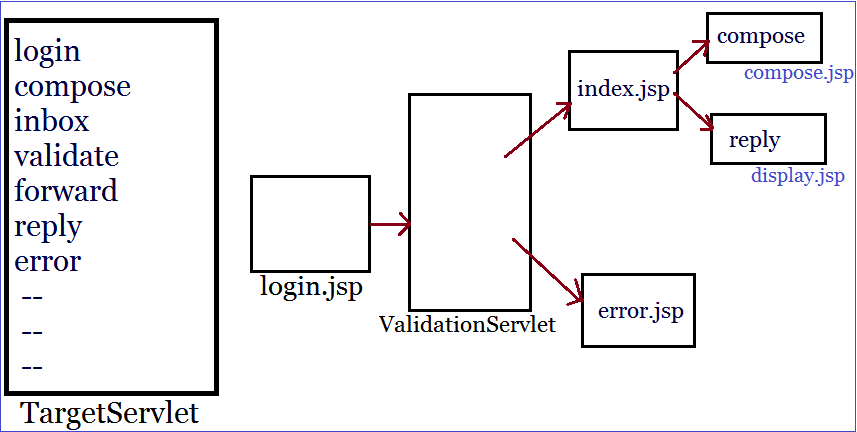

3. RequestDispatcher
   • Differences between getting RequestDispatcher by ServletRequest & ServletContext
   • RequestDispatcher's methods

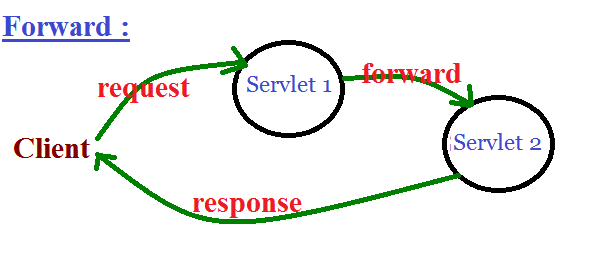

     1. Forward mechanism

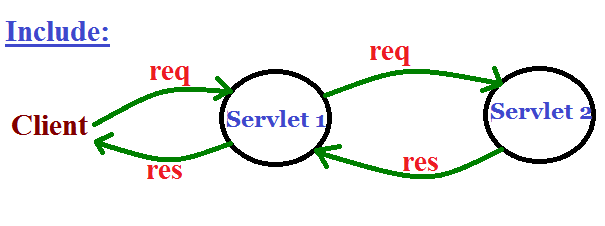

     2. Include mechanism
   • Differences between forward( ) and include( ) :
   • Foreign RequestDispatcher

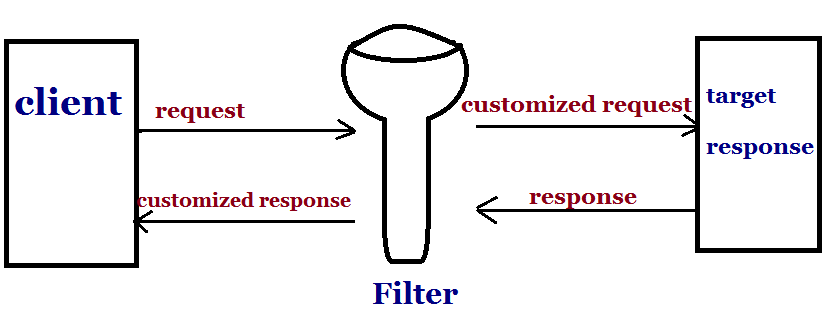

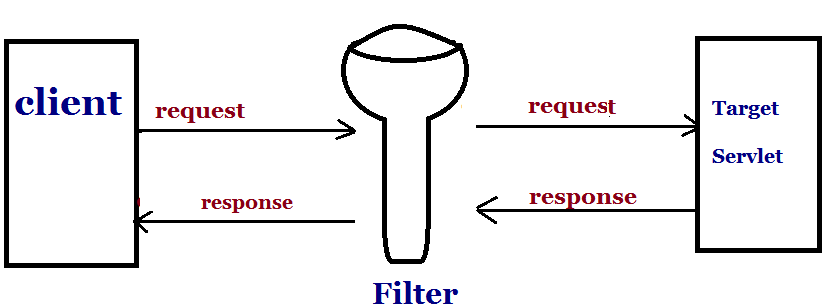

4. FILTERS (servlet 2.3 v)
   • FILTER- API :
     1. Filter
     2. FilterConfig
     3. FilterChain
   • Configuring Filter in web.xml
   • Mapping of Filter :
     • Mapping to a particular url-pattern
     • Mapping to a particular Servlet
     • Mapping to entire web-application

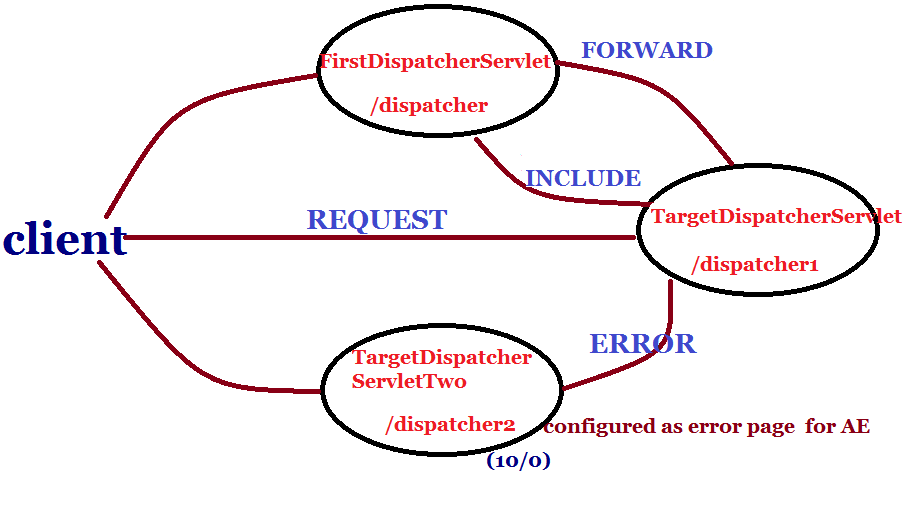

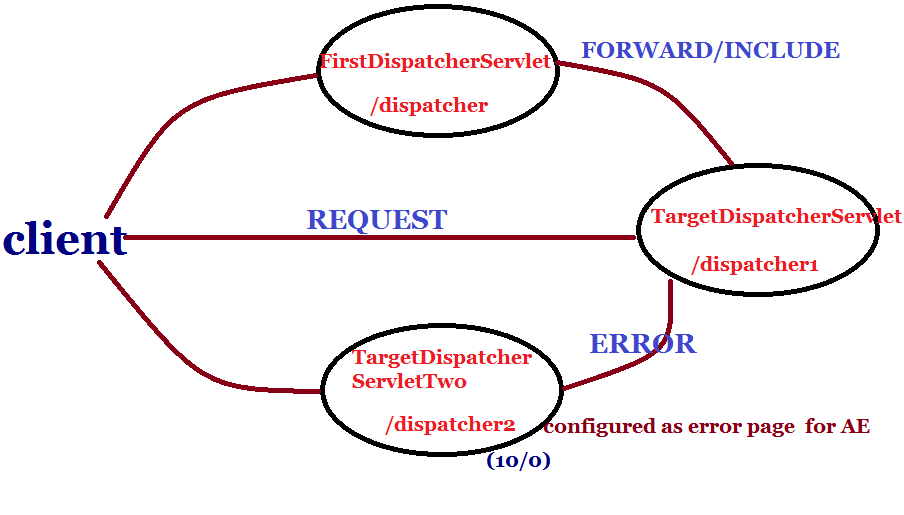

   • dispatcher tag
   • Difference between Filter's doFilter() and FilterChain's doFilter()
5. Wrappers

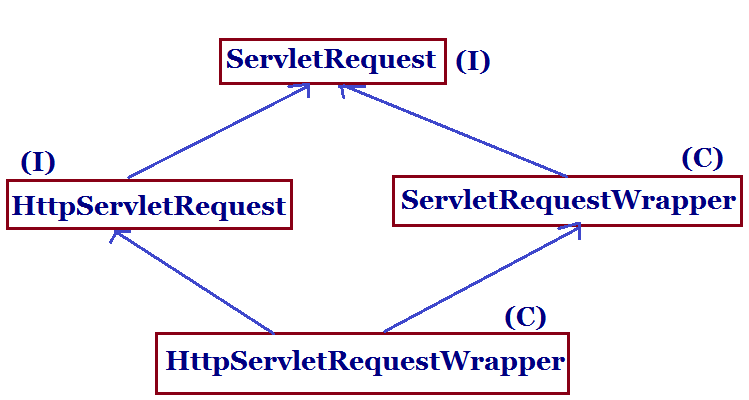

   • RequestWrapper

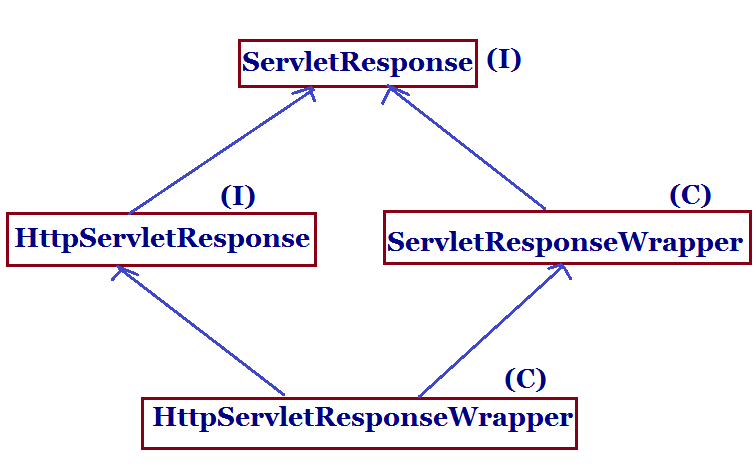

   • ResponseWrappers

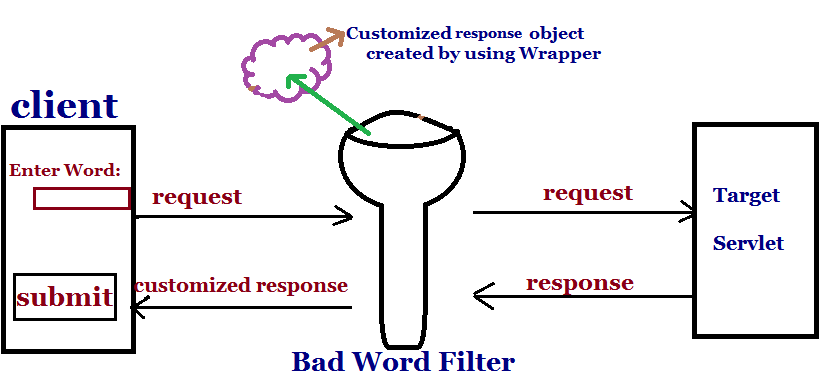

   • Demo program for request wrapper
   • Demo program for response wrapper

ServletContext parameter :

1. Write Servlet code to access initialization parameters.
2. Create the deployment descriptor elements for the initialization parameter.

1. For every Servlet , web container will create one ServletConfig object to maintain Servlet level initialization parameter . By using this object Servlet can get its configuration information.
2. Similarly for every web-application webcontainer creates one ServletContext object to maintain application level configuration information
3. Servlet can get application level configuration information through this context object only.
4. ServletConfig per Servlet , where as ServletContext per Web-application.
5. If initialization parameters are common for all Servlets then it is not recommended to declare those parameters at Servlet level , we have to declare such type of parameters at application -level by using < context-param >

   <web-app>
   <context-param>
   <param-name>username</param-name>
   <param-value>scott</param-value>
   </context-param>
   </web-app>


6. We can declare any number of context parameters but one < context-param > for each Servlet.
7. < context-param > is the direct child tag of <web-app > & hence we can declare any where with in <web-app>
8. The context initialization parameters are available through out the web-application any where.
9. If we want to use same init-parameters then we can declare at context-level as



   <context-param>
   	<param-name>username</param-name>
   	<param-value>scott</param-value>
   </context-param>



10. With in the Servlet we can access these context initialization parameters by using ServletContext object.
11. We can get ServletContext object by using getServletContext( ) of ServletConfig interface.
    With in out Servlet the following 3 possible ways to get the ServletContext object .

    ServletContext context=getServletContext( )

    ServletContext context=getServletConfig().getServletContext( )

    ServletContext context=this.getServletConfig().getServletContext( )

1. String getInitParameter(String name)
2. Enumeration getInitParameterNames( )

public class FirstServlet  extends HttpServlet {
public void doGet(HttpServletRequest request, HttpServletResponse response)
	                               throws ServletException, IOException {
PrintWriter out=response.getWriter();
ServletContext  context=this.getServletConfig().getServletContext( );
Enumeration enum=context.getInitParameterNames( );
while(enum.hasMoreElements()){
String paramValue=(String)enum.getInitParameter(paramName);
out.println(paramName+"  ... "+paramValue);
}
}

<web-app>

<context-param>
   <param-name>user</param-name>
   <param-value>scott</param-value>
</context-param>

<context-param>
   <param-name>pwd</param-name>
   <param-value>tiger</param-value>
</context-param>

<servlet>
  <servlet-name>first</servlet-name>
  <servlet-class>FirstServlet</servlet-class>

  <init-param>
      <param-name></param-name>
	  <param-value></param-value>
  </init-param>
</servlet>

<servlet-mapping>
  <servlet-name>first</servlet-name>
  <url-pattern>/fs</url-pattern>
</servlet-mapping>

</web-app>

Note : With in the Servlet if we can call getInitParameter() directly then it provides Servlet initialization parameters but not ServletContext parameters , hence initparameters by default Servlet initialization parameters.

String value=getInitParameter("movie");
String value=getServletConfig( ).getInitParameter("movie");

String value=getServletContext( ).getInitParameter("movie");
String value=getServletConfig( ).getServletContext( ).getInitParameter("movie");

Comparision between Servlet init & context initialization parameters :

<servlet>
	<init-param>
		<param-name>
		<param-value>
	</init-param>
</servlet>

<servlet>
	<context-param>
		<param-name>
		<param-value>
	</context-param>
</servlet>

Servlet Scopes :

1. Write Servlet code to add retrieve and remove attributes.
2. For the given scenario identify the proper scope.
3. Identify multithreading issues associated with each scope.

1. Form parameters or Request parameters
2. Servlet Initialization parameters
3. ServletContext parameters

The main purpose of these parameters are to bring information from outside environment into the Servlet , and these are read-only .

Based on our requirement we can create a new attribute , we can modify and remove existing attributes. Hence attributes concept is best suitable to store and share information between the components of web-application.

1. Request Scope
2. Session Scope
3. Application (or) context scope

Request Scope :

1. We can maintain request scope by using ServletRequest ( or ) HttpServletRequest object .
2. Request scope will start at the time of request object creation (i.e., just before starting service( ) ) and end at the time of request object destruction i.e., just after completing service( )
3. The information stored in request scope is available for all components which are processing that request.

1. public void setAttribute(String name , Object value)

   To add an attribute.
   If the specified attribute is already available , then the old value replaced with new value.


2. public Object getAttribute(String name)

   Returns the value associated with specified attribute.
   If the attribute is not available then we will get null.

3. public void removeAttribute(String name);

   This method remove an specified attribute from request scope.

4. public Enumeration getAttributeNames( );

   This method returns all attribute names associated with request object.

1. Adding an attribute in a scope is called attribute binding , where as removing an attribute from a scope is called attribute unbinding.
2. In any scope , attribute name should be unique i.e., there is no chance of existing 2 attributes with in same name in the same scope.

Session Scope :

1. This scope is maintained by HttpSession object.
2. Session scope will start at the time of session object creation & ends at the time of session object destruction.
3. Information stored in the session scope is available for all components which are participating in that Session.

1. public void setAttribute(String name , Object value)
2. public Object getAttribute(String name)
3. public void removeAttribute(String name )
4. public Enumeration getAttributeNames( )

• Once session expires we can't call these methods , Other wise we will get "IllegalStateException".

  session.invalidate();
  session.getAttribute("raja");


• EX: Login information should be available for entire session . Hence we have to store this information in the Session scope .

Application Scope (or) Context Scope :

1. This Scope is maintained by ServletContext object.
2. Application scope will start at the time of context object creation and end at the time of Context object destruction. i.e., application scope will start at application deployment time/server start up and ends at application undeployment/server shutdown.
3. The information stored in the application scope will be available for all components of web application irrespective of end-user.

1. public void setAttribute(String name , Object value)
2. public Object getAttribute(String name )
3. public void removeAttribute(String name )
4. public Enumeration getAttributeNames( )

Multithreading issues associated with each scope :

1. For every request , a new request object will be created which is accessed by only current thread. Other threads are not allowed to access request scoped attributes . Hence request scoped attribute are always Thread-safe.
2. With in the same session , we can send multiple requests symultaneously by opening new browser window . Hence Session object can be accessed simultaneously by multiple threads. Hence Session scoped attributes are not Thread-safe .

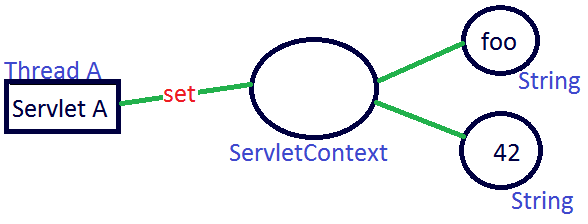

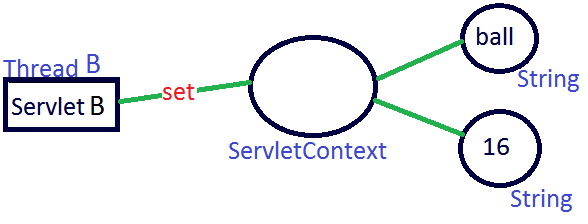

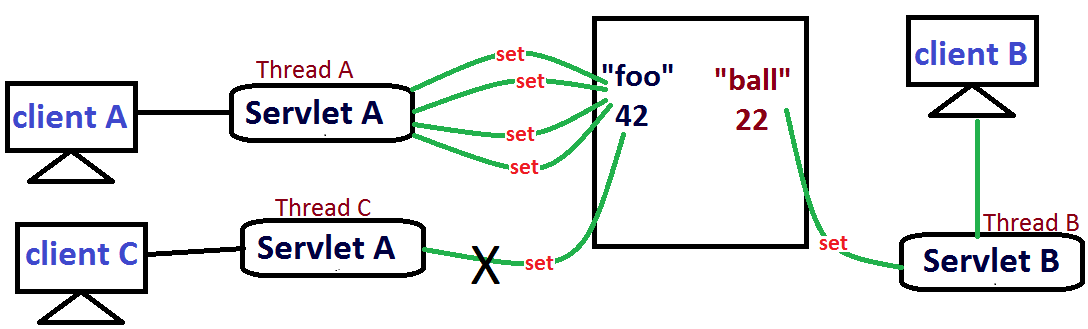

3. Context scoped attributes can be accessed simultaneously by multiple threads. Hence these are not Thread-safe.
4. Instance & static variables of Servlet can be accessed simultaneously by multiple threads, hence these are not Thread-safe.
5. For every thread a seperate copy of local variable will be created. Hence these local variables are Thread-safe.

String  pvalue=request.getParameter("user");
String  pvalue=request.getInitParameter("user");

String value = request.getAttribute("user");
CompiletimeError:Incompatible types
           found:java.lang.Object
        required:java.lang.String

IIQ: To access the value of request scoped attribute user, which of the following is valid ?

1. String user=getParameter("user"); -----> invalid
2. String user=request.getParameter("user"); -----> invalid
3. String user=request.getInitParameter("user"); -----> invalid
4. String user=request.getAttribute("user"); -----> invalid
5. String user=(String)request.getAttribute("user");-----> valid

public class FirstServlet extends HttpServlet {

StringBuffer buffer1=new StringBuffer("raja");
static StringBuffer buffer2=new StringBuffer();

 public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

  StringBuffer filter=new StringBuffer();
  HttpSession session=request.getSession();
 }

1. buffer1
2. buffer2
3. request
4. filter
5. session

Differences between parameters and attributes :

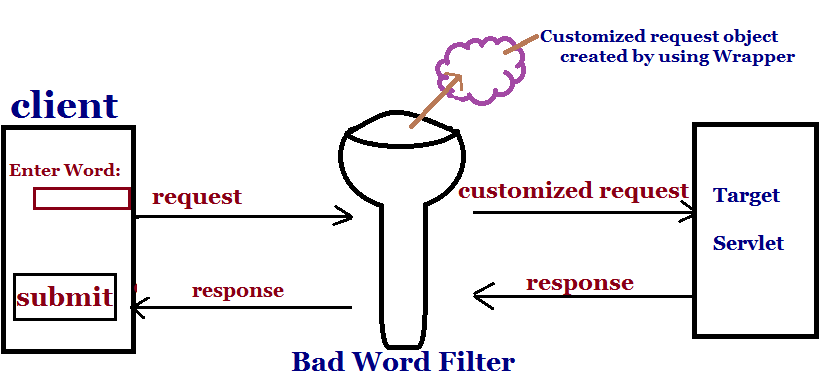

public class CustRequest extends HttpServletRequestWrapper{

	public CustRequest(HttpServletRequest request) {
		super(request);
	}

	public String getString(String word){
		String word1=super.getParameter(word);
		if(word1.equals("java")|| word1.equals("scjp"))
			return word;
		else
			return word1;
	}
}

public class TargetServlet extends HttpServlet {
public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		PrintWriter out = response.getWriter();
		String word=((ServletRequest) response).getParameter("word");
		out.println("You  typed :"+word);
	}
}

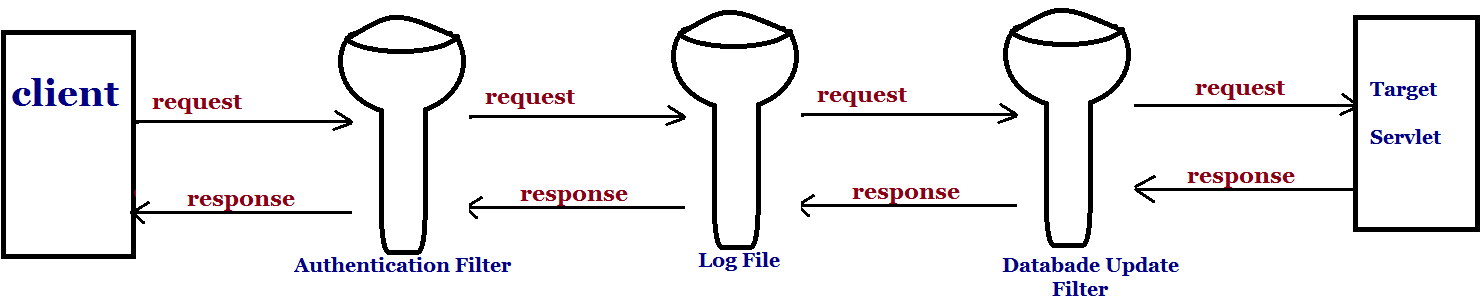

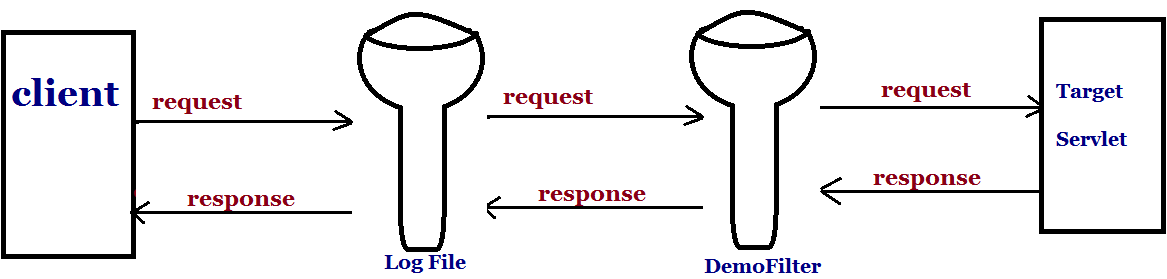

1. Usage Filters Concept in out web application is considered as following "Intercepting Filter Design pattern".
2. Usage of Wrapper concept in our web-application is considered as "decorator design pattern".

Demo program to print all context scoped attributes:

public class ContextAttributeDemo extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

  PrintWriter out = response.getWriter();
  out.println("<h1>Context Attributes </h1>");
  ServletContext context=getServletContext();
  context.setAttribute("course", "SCWCD");
  Enumeration e=context.getAttributeNames();

  while (e.hasMoreElements()) {
	String aname = (String) e.nextElement();
	Object avalue=context.getAttribute(aname);
	out.println(aname+"......."+avalue+"<br>");
  }
}
}

output :

org.apache.catalina.resources.......
   org.apache.naming.resources.ProxyDirContext@50a649

course.......SCWCD

com.sun.faces.config.WebConfiguration.......
     com.sun.faces.config.WebConfiguration@d507e9

org.apache.AnnotationProcessor.......
    org.apache.catalina.util.DefaultAnnotationProcessor@1fa6d18

Ex 2: Write a program to print hit count of the web-application:
(i.e., to print no. of requests to the web-application)


public class HitCountDemo extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 PrintWriter out = response.getWriter();
 ServletContext context=getServletContext();

 Integer count=(Integer)context.getAttribute("hitcount");
 if(count==null){
	 count=1;
 }
 else {
	 count++;
 }

context.setAttribute("hitcount", count);
out.println("Hit Count is :"+count);
System.out.println("count : "+count);
}
}

Write a program to print no. of requests send in each(current) Session.

public class SessionCount extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
 PrintWriter out=response.getWriter();
 HttpSession session=request.getSession();
 Integer count=(Integer)session.getAttribute("hitcount");

 if(count==null)
	 count=1;
 else
	 count++;

 session.setAttribute("hitcount", count);
 out.println("The no.of counts in Session is :"+ count);
}
}

• For every browser new Session will be created.
• Per every user count value is : 1 (first browser)
• Other browser value : 2
  (From one browser if we send any no.of requests, count value won't be increase.)
• If we open new browser(tab) from old----->file -----> new ----> window

Write a program to print no.of Session objects created in application
(i.e., to print total no. of users login to the application):

public class UserCount extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 PrintWriter out = response.getWriter();
 ServletContext context=getServletContext();
 Integer count=(Integer)context.getAttribute("hitcount");
 HttpSession session=request.getSession();

 if(session.isNew()) {
	 if(count==null)
		 count=1;
	 else
		 count++;

	 context.setAttribute("hitcount", count);
 }
 out.println("No of Users logged in : "+ count);
}

}

WAP to display no. of requests triggered Ip-address wise. (from same machine):

public class IPAddress extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 ServletContext context=getServletContext();
 String ipaddress=request.getRemoteAddr();
 Integer count=(Integer)context.getAttribute(ipaddress);

 if(count==null){
	 count=1;
 }
 else {
	 count++;
 }

 context.setAttribute(ipaddress, count);
 out.println("The no. of requests : "+ count);
}
}

How do we make Context scoped attributes Thread safe ?

public class ContextScopeThreadSafe extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 out.println("The Context coped Attributes : ");
 getServletContext().setAttribute("foo", "42");
 getServletContext().setAttribute("ball","22");
 out.println(getServletContext().getAttribute("foo"));
 out.println(getServletContext().getAttribute("ball"));
}
}

Step 1 :

Step 2 :

Step 3 :

Step 4 :

public synchronized void doGet(HttpServletRequest request,
      HttpServletResponse response)throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 out.println("The Context coped Attributes : ");
  --------------------
}

synchronizing doGet() means that only one Thread of Servlet A can be running at a time it doesn't stop other servlets or jsp's from accessing context scoped attributes.

synchronizing doGet() would stop other Threads from the same Servlet from accessing context scoped attributes but it won't to any thing to stop a completely different servlets or jsp's

Note :

If every one accessing context attributes get the lock on context object then you are guarantee that only one method at a time can be getting or setting context scoped attibutes.

public class ContextSyncronize extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 out.println("Test the Context scoped Attributes :");

 synchronized (getServletContext()) {
  getServletContext().setAttribute("foo", "42");
  getServletContext().setAttribute("ball", "22");
  out.println(getServletContext().getAttribute("foo"));
  out.println(getServletContext().getAttribute("ball"));
 }
 }
}

RequestDispatcher:

1. Describes RequestDispatcher mechanism.
2. Write Servlet code to create RequestDispatcher.
3. Write Servlet code to forward or include target resource.
4. Identify and describe the attributes added by web-container while forwarding and including.

1. For every change re-design of component is required. Hence enhancement will become very complex and creates maintainability problems.
2. It doesn't promote re-usability of the code.
   We can resolve these problems by maintaining a separate component for each task.

1. With out effecting remaining components , we can modify any component. Hence enhancement will become very easy and improves maintainability.
2. This approach promotes re-usability of the code.

1. Where ever validation logic is required we can reuse same validation logic without re-writing.
2. If the functionality is distributed across several components, these components have to communicate with each other to provide response to end-user. We can achieve this communication by using RequestDispatcher.

Servlet code to get RequestDispatcher :

RequestDispatcher rd=request.getRequestDispatcher("/test2"); //absolute path
RequestDispatcher rd=request.getRequestDispatcher("test2"); //relative path

By ServletContext object :

1. If URL pattern is not defined for the target Servlet then we have to use this method.
2. The argument represents the value associated with Servlet name tag in web.xml which represents logical name of the Servlet.
3. If the target Servlet is not available then we will get null but not 404 status code .On that null if we are trying to perform forward (or) including we will NullPointerException.

Differences between getting RequestDispatcher by ServletRequest & ServletContext :

RequestDispatcher's methods :

1. public void forward(ServletRequest request, ServletResponse response) throws ServletException, IOException
2. public void include(ServletRequest request, ServletResponse response) throws ServletException, IOException

Forward mechanism :

1. If the 1^st Servlet is responsible for some preliminary processing & 2^nd Servlet is responsible to provide requirement response then we should go for forward mechanism.
2. Just before forwarding response object will be cleared automatically by the web-container . Hence if any response added by the first servlet won't be delivered to the end-user. Only second servlet response will be displayed.
3. In forward mechanism second servlet has complete control on response object. Hence it can change response headers like contentType( ) .
4. In forward mechanism , the same request object will be forwarded to the second servlet. Hence information sharing between the components is always possible in the form of request scoped attributes.
5. After forwarding the request to second servlet the control will come to the first servlet again to execute remaining statements. In the remaining statements if we are trying to write anything to the response these statements will be ignored by the web-container. In the remaining statements if any exception raised only that exception information will be displayed for end user instead of second servlet response . i.e., Second servlet response will be delivered after completing remaining statements execution only.

public class ForwardServlet extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 out.println("Hello");
 RequestDispatcher rd=request.getRequestDispatcher("/forward2");
 rd.forward(request,response);
 out.println("Hi");
 System.out.println(10/0);  //-->1
}
}

public class ForwardTwo extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 out.println("This is Second Forward Servlet ");
}
}

• If we are sending the request to the FirstServlet, ArithmeticException will be displayed for the end-user instead of second Servlet response.
• If we are commenting line1, then only 2^nd Servlet response will be displayed for the end-user.
• Recursive forward call always raises RuntimeException saying StackOverFlowError.

public class ForwardTwo extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

  response.setContentType("text/html");
 PrintWriter out = response.getWriter();

 out.println("This is  Forward Servlet ");
 out.flush();
 RequestDispatcher rd=request.getRequestDispatcher("/forward");
 rd.forward(request, response);
  // ---life cycle will start to the second servlet
}
}

public class ForwardTwo extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 out.println("This is  Forward Servlet ");
 RequestDispatcher rd=request.getRequestDispatcher("/forward?uname=raja&pwdscwcd");
 rd.forward(request, response);
}
}

public class ForwardServet extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 String name=request.getParameter("uname");
 String pwd=request.getParameter("pwd");
 out.println(name+"........."+pwd);
}
}

<form action="/servlet/vs">
<table>
<tr><td>Name :</td><td> <input type="text" name="uname"></td></tr>
<tr><td>Password : </td><td> <input type="text" name="pwd"></td></tr>
<tr><td><input type="submit" value="submit"></td></tr>
</table>
</form>

public class ValidateServlet extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 out.println("Validate Servlet");
 String name=request.getParameter("uname");
 String pwd=request.getParameter("pwd");

if(name.equalsIgnoreCase("raja")&&pwd.equalsIgnoreCase("scwcd")){
	 RequestDispatcher rd=getServletContext().getRequestDispatcher("/inbox.jsp");
	 rd.forward(request, response);
}
else {
	 RequestDispatcher rd=request.getRequestDispatcher("error.jsp");
	 rd.forward(request, response);
 }
}

}

Invalid Credentials , please  login here
<a href="login.html">LOGIN</a>

<h1>Successful  Login</h1>

• Attributes added by web-container while forwarding the request.
• While forwarding the request from one Servlet to another , web-container will always add some attributes in request scope to provide Original request information to the second Servlet.

1. javax.servlet.forward.request-uri
2. javax.servlet.forward.context-parh
3. javax.servlet.forward.servlet-path
4. javax.servlet.forward.path-info
5. javax.servlet.forward.query-string

1. If we are getting RequestDispatcher by using getNamedDispatcher , the web-container won't add any attributes in request scope.
2. With in the same Servlet we can't call forward more than once directly . Otherwise we will get IllegalStateException.

Include mechanism :

1. In several components required some common functionality, Its never recommended to hardcode that functionality in every component. We have to separate component and we have to make that functionality available by using include mechanism for every component.
2. This approach promotes code re-usability and reduces maintainability problems.
3. Hence the maintain objective of include mechanism is to include the response of other resourses in the current response . This include is best suitable for JSP to include Headers and Footers , Banner information and Logos etc.
4. In the include mechanism the first Servlet is responsible to provide total response . But it can include the response of some other components.
5. In the Include, second servlet doesn't have complete control on the response object. It is not allowed to change response headers , If it is trying to change these changes will be ignored by web-container.

public class IncludeServlet extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 out.println("First Include Servlet <br>");

 RequestDispatcher rd=request.getRequestDispatcher("/include2");
 rd.include(request, response);

 out.println("First Include Servlet Again ");
}
}

public class IncludeTwo extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		response.setContentType("text/html");
		PrintWriter out = response.getWriter();
		out.println("Include Second Servlet <br>");
}
}

First Include Servlet
Include Second Servlet
First Include Servlet Again

Attributes added by Web-container while performing include :

1. javax.servlet.include.request-uri
2. javax.servlet.include.context-parh
3. javax.servlet.include.servlet-path
4. javax.servlet.include.path-info
5. javax.servlet.include.query-string

Differences between forward( ) and include ( ) :

forward( )	include( )
s1 ---->forwarding Servlet s2 ---->forwarded Servlet	s1 ----> including Servlet s2 ----> included Servlet
Once first Servlet forwards the request to the second Servlet , second Servlet is completely control on response object , provide the response.	In the case of include first Servlet is responsible to provide required response.
While performing forward call the response object will be cleared automatically. Hence FirstServlet response won't be displayed for the end-user.	While performing include, the response object won't be cleared. Hence first servlet response also will be displayed for the end-user.
After committing the response we can't perform forward. Otherwise we will get IllegalStateException.	After committing the response we can call include mechanism.
With in the same Servlet we can call forward( ) only once and mostly as the last statement.	With in the Servlet we can call include( ) any no. of times.
In the case of forward( ) , second Servlet has complete control on the response object.	In the case of include , 2 ndServlet doesn't have complete control on the response object. It is not allowed to change response headers.
forward mechanism we can use frequently in Servlets because it is associated with processing.	Include mechanism we can use frequently in JSP's , Because it is associated with view part.

Foreign RequestDispatcher :
Inside Servlet1 :

ServletContext  context=getServletContext( );
ServletContext  fcontext=context.getServletContext("/webapp2");
RequestDispatcher  rd=fcontext.getRequestDispatcher("/test2");
rd.forward(req , res );

1. By default most of the webservers including Tomcat won't provide support for cross context communication.
2. In this case getRequestDispatcher( ) returns null, on that null if we are trying call forward( ) (or ) include( ) we will get NullPointerException.
3. To provide support for cross context communication at Server level some configuration changes are required.
4. As RequestDispatcher mechanism will work with in the same server. Hence both the applications should be deployed in the same Server.

1. What is the purpose of RequestDispatcher ?
2. Explain RequestDispatcher mechanism ?
3. Differences between context.getRequestDispatcher() & context.getNamedDispatcher( ) ?
4. Various possible ways to get RequestDispatcher ?
5. Differences betwee forward & sendRedirection ?
6. What is the Difference betwee forward & include ?
7. What is foreign RequestDispatcher and how we can get ?
8. Explain RequestDispatcher mechanism between 2 applications of the same Server ?
9. What are the attributes added by the web-container while forwarding and including the request ?
10. What is the purpose of these attributes & explain its meaning ?

FILTERS  (servlet 2.3 v) :

1. Describe web-container request processing model.
2. Write and configure a filter.
3. Create a request and response Wrapper for the given design problem.
4. If we want to perform any activity at the time of pre-processing and post-processing of the request. Then we should go for Filters.
5. This concept introduced in Servlet 2.3 version.

1. Logging
2. Security checks like Authentication & Authorization
3. Altering request information
4. Altering response information
5. Compression of response
6. Encryption of response etc.

FILTER- API :

1. Filter
2. FilterConfig
3. FilterChain

Filter :

1. init( ) :

   public void init(FilterConfig config) throws ServletException

   This method will be executed only once to perform initialization activity after instantiation immediately.
2. destroy( ) :

   public void destroy( )

   This method will be executed only once to perform CleanUp activities , just before taking the Filter from out of Serice.
3. doFilter( ) :

   public void doFilter(ServletRequest request , ServletResponse response, FilterChain chain) throws ServletException, IOException

   This method will be executed for every request, Entire Filtering logic we have to define in this method only.
   We can use FilterChain object to forward the request to the next level . It can be another Filter (or) Servlet.

FilterConfig :

• For every Filter, web-container creates one FilterConfig object to hold its configuration information.
• Web-container handover FilterConfig object to the Filter as argument to init( ) method .

1. public String getFilterName( );
   Returns logical name of the Filter configured in web.xml by using <filter-name > tag .
2. public String getInitParameter(String parameter)
3. public Enumeration getInitParameterNames( )
4. public ServletContext getServletContext( )

FilterChain :

• We can use FilterChain to forward the request to the next level.[It may be another filter (or) Servlet ].
• FilterChain interface defines the following doFilter( ).

  public void doFilter(ServletRequest request, ServletResponse response )throws ServletException, IOException

public class FirstFilter implements Filter {

 public void init(FilterConfig config) throws ServletException {
 }

 public void doFilter(ServletRequest request, ServletResponse response,
			FilterChain chain) throws IOException, ServletException {
  PrintWriter out=response.getWriter();
  out.println("This is First Filter before processing the request
                                         i.e., pre-processing");

  chain.doFilter(request, response);
  out.println("This is First Filter after processing the request
                                       i.e., post-processing");
 }

 public void destroy() {
 }

}

public class TargetServletFilter extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		response.setContentType("text/html");
		PrintWriter out = response.getWriter();
		out.println("This is Target Servlet Filter ");
	}
}

1. When ever we are Sending the request to the Servlet , web-container checks is any Filter configured for this Servlet (or) not
2. If any Filter is configured web-container forwards the request to the Filter instead of Servlet.
3. After completing Filtering logic Filter forwards the request to the TargetServlet.
4. After processing the request by TargetServlet the response will be forwarded to the Filter instead of browser.
5. After executing Filtering logic , Filter forwards the total response to the end-user .

Configuring Filter in web.xml :

  <servlet>
    <servlet-name>TargetServletFilter</servlet-name>
    <servlet-class>jobs.TargetServletFilter</servlet-class>
  </servlet>
  <servlet-mapping>
    <servlet-name>TargetServletFilter</servlet-name>
    <url-pattern>/tsfilter</url-pattern>
  </servlet-mapping>

  <filter>
    <filter-name>firstfilter</filter-name>
    <filter-class>jobs.FirstFilter</filter-class>
  </filter>
  <filter-mapping>
    <filter-name>firstfilter</filter-name>
    <url-pattern>/tsfilter</url-pattern>
  </filter-mapping>

Mapping of Filter :

Mapping to a particular url-pattern :


<filter-mapping>
	<filter-name>DemoFilter<filter-name>
	<url-pattern>/test</url-pattern>
</filter-mapping>


Mapping to a particular Servlet :

<filter-mapping>
  <filter-name>DemoFilter</filter-name>
  <servlet-name>TargetServlet</servlet-name>
</filter-mapping>

Filter mapping to entire web-application :

<dispatcher> :

A request directly  from the browser. (REQUEST )
By RequestDispatcher 's  forward call. (FORWARD)
By RequestDispatcher's include call. (INCLUDE )
By RequestDispatcher's error call. (ERROR)

• By default Filter will be executed only for direct end-user request, and won't be executed for RequestDispatcher's forward & include and error-page calls.
• But in Servlet 2.4 version Sun people introduced <dispatcher> to extend Filter concepts for remaining cases also. i.e., for which type of request Filter will be executed is decided by < dispatcher > tag.

• REQUEST
• FORWARD
• INCLUDE
• ERROR

<filter-mapping>
 <filter-name>DemoFilter</filter-name>
 <url-pattern>/test</url-pattern>
 <dispatcher>REQUEST</dispatcher>
 <dispatcher>FORWARD</dispatcher>
</filter-mapping>

<filter-mapping>
 <filter-name>
 <url-pattern>
 <dispatcher>INCLUDE</dispatcher>
</filter-mapping>

public class FirstDispatcherServlet extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();

 out.println("First Dispatcher Servlet Pre-processing<br>");
 RequestDispatcher rd=request.getRequestDispatcher("/dispatcher1");
 rd.include(request, response);
 out.println("<br>First Dispatcher Servlet Post-processing<br>");
}
}

public class TargetDispatcherServlet extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

 response.setContentType("text/html");
 PrintWriter out = response.getWriter();
 for(int i=0;i<5;i++)
 out.println("<br>This is Target Dispatcher Servlet"+i+"<br>");
}
}

public class TargetDispatcherServletTwo extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		response.setContentType("text/html");
		PrintWriter out = response.getWriter();
		out.println(10/0);
	}

}

public class DispatcherFilter implements Filter {

public void destroy() {
 System.out.println("Destroy method");
}

public void doFilter(ServletRequest request, ServletResponse response,
	FilterChain chain) throws IOException, ServletException {
 PrintWriter out=response.getWriter();
 out.println("<br>This is First Filter before processing the request
                             i.e., pre-processing<br>");

 chain.doFilter(request, response);
  out.println("<br>This is First Filter after processing the request
                            i.e., post-processing<br>");
}

public void init(FilterConfig config) throws ServletException {
 System.out.println("Filter init method");
}
}

1. Identify all Filters which are configured according to url-pattern and Execute all these filters from top to bottom .
2. Identify all Filters which are configured according to servlet-name and execute all these Filters from top- to- bottom.
   i.e., The Filters which are configured by url pattrens will get high priority when compared with Filters which are configured by servlet-name.

<filter-mapping>
  <filter-name>Filter1</filter-name>
  <url-pattern>/Recipes/*</url-pattern>
</filter-mapping>

<filter-mapping>
  <filter-name>Filter2</filter-name>
  <url-pattern>/Recipes/HotList.do</url-pattern>
</filter-mapping>

<filter-mapping>
  <filter-name>Filter3</filter-name>
  <url-pattern>/Recipes/Add/*</url-pattern>
</filter-mapping>

<filter-mapping>
  <filter-name>Filter4</filter-name>
  <url-pattern>/Recipes/Modify/Modify.do</url-pattern>
</filter-mapping>

<filter-mapping>
  <filter-name>Filter5</filter-name>
  <url-pattern>*</url-pattern>
</filter-mapping>

Difference between Filter's doFilter() and FilterChain's doFilter() :

Wrappers :

• Some times it is required to alter request and response information in filters , we can achieve this by using Wrapper class.
  Ex 1: With in the filter we have to convert end-users resume format from PDF to DOC file , We can achieve this by Wrapper.
  Ex 2: In the filter we have to compress the response and we can send that compressed response to the end-user. So that we can reduce download time, We can achieve this by using Wrapper.

1. RequestWrapper
2. ResponseWrapper

RequestWrapper :

• To alter request information

1. ServletRequestWrapper
2. HttpServletRequestWrapper

ResponseWrappers :

• To alter response information

1. ServletResponseWrapper
2. HttpServletResponseWrapper

Demo program for RequestWrapper :

1. End user enter the word and click the submit button.
2. Web-container forwards the request to the filter instead of Servlet.
3. Filter creates a customized request object by using Wrapper.
4. Filter forwards that customized request object to the target Servlet instead of Origial request.
5. With in the target Servlet if we are applying any operation on the request object our own customized behaviour will be reflected. but not original request behaviour.
6. Target Servlet prepares the response & forward to filter instead of browser.
7. Filter forwards that response to the end-user.

Demo Program :

<form action="./wrapper">
Enter Word : <input type="text" name="word"><br>
<input type="submit" value="submit">
</form>

public class BadWordWrapperFilter implements Filter {

public void destroy() {
  System.out.println("destroy method");
}

public void doFilter(ServletRequest request, ServletResponse response,
	FilterChain chain) throws IOException, ServletException {
 CustomizeWrapperRequest myRequest=new
               CustomizeWrapperRequest((HttpServletRequest) request);
 chain.doFilter(myRequest, response);
}

public void init(FilterConfig config) throws ServletException {
  System.out.println("init method");
}
}

public class CustomizeWrapperRequest extends HttpServletRequestWrapper {

public CustomizeWrapperRequest(HttpServletRequest request) {
 super(request);
}

public String getParameter(String x) {
 String word1=super.getParameter(x);

 if(word1.equalsIgnoreCase("java") || word1.equalsIgnoreCase("scjp") ){
	return "SLEEP";
 }
 else {
	return word1;
 }
}
}

public class TargetWrapperServlet extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		response.setContentType("text/html");
		PrintWriter out = response.getWriter();
		String word=request.getParameter("word");
		out.println("The Entered word is :"+word);
	}
}

Write a Demo program for response wrapper :

public class ResponseWrapperFilter implements Filter {

public void destroy() {
 System.out.println("Response Wrapper destroy");
}

public void doFilter(ServletRequest request, ServletResponse response,
	FilterChain chain) throws IOException, ServletException {

 CustomizeWrapperResponse myReponse=new CustomizeWrapperResponse(
                           (HttpServletResponse) response);
 chain.doFilter(request, myReponse);
 String text=myReponse.toString();

 if(text!=null)
 text=text.toUpperCase();
 response.getWriter().write(text);
}

public void init(FilterConfig config) throws ServletException {
 System.out.println("Response Wrapper init");
}

}

public class CustomizeWrapperResponse extends HttpServletResponseWrapper {

	protected CharArrayWriter charWriter;
	protected PrintWriter writer;

	public CustomizeWrapperResponse(HttpServletResponse response) {
		super(response);
		charWriter=new CharArrayWriter();
	}

	public PrintWriter getWriter() throws IOException {
		if(writer!=null){
			return writer;
		}
		return writer=new PrintWriter(charWriter);
	}

	public String toString() {
		String text=null;

		if(writer!=null) {
			text=charWriter.toString();
		}
		return text;
	}

}

public class TargetResponseWrapperServlet extends HttpServlet {

public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		response.setContentType("text/html");
		PrintWriter out = response.getWriter(); //customize response
		out.println("Hi Ashok , Wrappers are very easy ");
	}

}

• We have to override getOutputStream() method.
• Suppose if we are getting PrintWriter and ServletOutputStream , we have to handle "IllegalStateException".

• Usage Filter concept in our web application is considered as following "Intercepting Filter Design Pattern".
• Usage of wrapper concept in our web application is considered as "Decorator Design Pattern".

all programs web.xml

<web-app>

<servlet>
  <servlet-name>FirstServlet</servlet-name>
  <servlet-class>jobs.FirstServlet</servlet-class>
</servlet>
<servlet-mapping>
  <servlet-name>FirstServlet</servlet-name>
  <url-pattern>/fs</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>CustRequest</servlet-name>
  <servlet-class>jobs.CustRequest</servlet-class>
</servlet>
<servlet-mapping>
  <servlet-name>CustRequest</servlet-name>
  <url-pattern>/cr</url-pattern>
</servlet-mapping>


<servlet>
  <servlet-name>TargetServlet</servlet-name>
  <servlet-class>jobs.TargetServlet</servlet-class>
</servlet>
<servlet-mapping>
  <servlet-name>TargetServlet</servlet-name>
  <url-pattern>/ts</url-pattern>
</servlet-mapping>


<servlet>
  <servlet-name>ContextAttributeDemo</servlet-name>
  <servlet-class>jobs.ContextAttributeDemo</servlet-class>
</servlet>
<servlet-mapping>
  <servlet-name>ContextAttributeDemo</servlet-name>
  <url-pattern>/cad</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>HitCountDemo</servlet-name>
  <servlet-class>jobs.HitCountDemo</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>HitCountDemo</servlet-name>
    <url-pattern>/hcd</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>SessionCount</servlet-name>
  <servlet-class>jobs.SessionCount</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>SessionCount</servlet-name>
    <url-pattern>/sc</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>UserCount</servlet-name>
  <servlet-class>jobs.UserCount</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>UserCount</servlet-name>
    <url-pattern>/uc</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>IPAddress</servlet-name>
  <servlet-class>jobs.IPAddress</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>IPAddress</servlet-name>
    <url-pattern>/ip</url-pattern>
</servlet-mapping>


<servlet>
  <servlet-name>ContextScopeThreadSafe</servlet-name>
  <servlet-class>jobs.ContextScopeThreadSafe</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>ContextScopeThreadSafe</servlet-name>
    <url-pattern>/csts</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>ContextSyncronize</servlet-name>
  <servlet-class>jobs.ContextSyncronize</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>ContextSyncronize</servlet-name>
    <url-pattern>/cs</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>ForwardServlet</servlet-name>
  <servlet-class>jobs.ForwardServlet</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>ForwardServlet</servlet-name>
    <url-pattern>/forward</url-pattern>
</servlet-mapping>


<servlet>
  <servlet-name>ForwardTwo</servlet-name>
  <servlet-class>jobs.ForwardTwo</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>ForwardTwo</servlet-name>
    <url-pattern>/forward2</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>ValidateServlet</servlet-name>
  <servlet-class>jobs.ValidateServlet</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>ValidateServlet</servlet-name>
    <url-pattern>/vs</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>IncludeServlet</servlet-name>
  <servlet-class>jobs.IncludeServlet</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>IncludeServlet</servlet-name>
    <url-pattern>/include</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>IncludeTwo</servlet-name>
  <servlet-class>jobs.IncludeTwo</servlet-class>
</servlet>
<servlet-mapping>
   <servlet-name>IncludeTwo</servlet-name>
   <url-pattern>/include2</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>TargetServletFilter</servlet-name>
  <servlet-class>jobs.TargetServletFilter</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>TargetServletFilter</servlet-name>
    <url-pattern>/tsfilter</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>FirstDispatcherServlet</servlet-name>
  <servlet-class>jobs.FirstDispatcherServlet</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>FirstDispatcherServlet</servlet-name>
    <url-pattern>/dispatcher</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>TargetDispatcherServlet</servlet-name>
  <servlet-class>jobs.TargetDispatcherServlet</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>TargetDispatcherServlet</servlet-name>
    <url-pattern>/dispatcher1</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>TargetDispatcherServletTwo</servlet-name>
  <servlet-class>jobs.TargetDispatcherServletTwo</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>TargetDispatcherServletTwo</servlet-name>
    <url-pattern>/dispatcher2</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>TargetWrapperServlet</servlet-name>
  <servlet-class>jobs.TargetWrapperServlet</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>TargetWrapperServlet</servlet-name>
    <url-pattern>/wrapper</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>ResponseWrapperFilter</servlet-name>
  <servlet-class>jobs.ResponseWrapperFilter</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>ResponseWrapperFilter</servlet-name>
    <url-pattern>/responsefilter</url-pattern>
</servlet-mapping>

<servlet>
  <servlet-name>TargetResponseWrapperServlet</servlet-name>
  <servlet-class>jobs.TargetResponseWrapperServlet</servlet-class>
</servlet>
<servlet-mapping>
    <servlet-name>TargetResponseWrapperServlet</servlet-name>
    <url-pattern>/responsewrapper</url-pattern>
</servlet-mapping>






<filter>
  <filter-name>firstfilter</filter-name>
  <filter-class>jobs.FirstFilter</filter-class>
</filter>
<filter-mapping>
  <filter-name>firstfilter</filter-name>
  <url-pattern>/tsfilter</url-pattern>
</filter-mapping>



<filter>
  <filter-name>dispatcherfilter</filter-name>
  <filter-class>jobs.DispatcherFilter</filter-class>
</filter>
<filter-mapping>
    <filter-name>dispatcherfilter</filter-name>
    <servlet-name>FirstDispatcherServlet</servlet-name>
    <dispatcher>INCLUDE</dispatcher>
    <dispatcher>REQUEST</dispatcher>
    <dispatcher>FORWARD</dispatcher>
    <dispatcher>ERROR</dispatcher>
</filter-mapping>

<filter>
  <filter-name>BadWordWrapperFilter</filter-name>
  <filter-class>jobs.BadWordWrapperFilter</filter-class>
</filter>
<filter-mapping>
 <filter-name>BadWordWrapperFilter</filter-name>
 <url-pattern>/wrapper</url-pattern>
</filter-mapping>

<filter>
  	<filter-name>ResponseWrapperFilter</filter-name>
  	<filter-class>jobs.ResponseWrapperFilter</filter-class>
</filter>
<filter-mapping>
  <filter-name>ResponseWrapperFilter</filter-name>
  <url-pattern>/responsewrapper</url-pattern>
</filter-mapping>


 <error-page>
  <exception-type>java.lang.ArithmeticException</exception-type>
  <location>/dispatcher1</location>
 </error-page>


 </web-app>
